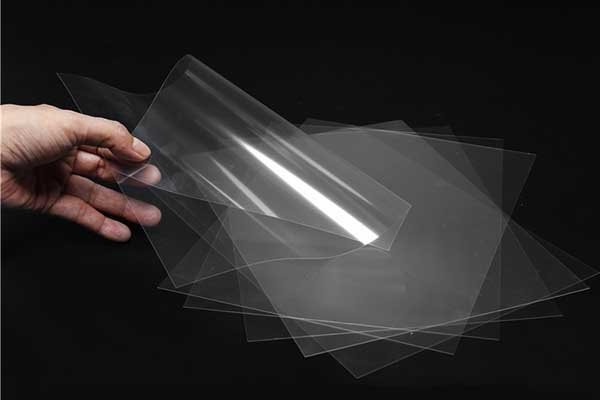

Anti-Static PET Sheets for Handling and Packaging

Specify anti-static PET sheet stock for your handling or packaging project by defining the required electrical property, test conditions, dimensions and processing method. Review representative samples before approving a grade.

Send Your Inquiry Now

Image Gallery

Specification

Specify the sheet by its intended use

This page focuses on anti-static PET sheet stock for handling, separators and packaging projects where charge generation or static attraction needs to be evaluated. Describe the actual use and acceptance criteria; the anti-static name alone does not establish suitability for sensitive electronics, cleanrooms or protective equipment.

Information needed for a quotation

Application, handled product and the role of the sheet in the complete packaging or handling system.
Required electrical property and limits, test method, electrode arrangement and conditioning temperature and humidity.
PET grade, thickness and tolerance; cut dimensions or usable roll width, core, maximum diameter and winding direction.
Color, transparency, haze and surface appearance requirements, including which face is treated.
Cutting, forming, printing, labeling or bonding process, and expected cleaning or reuse cycles.
Quantity, destination, packing requirements and grade-specific documentation needed for review.

Qualify a representative sample

Agree the method and acceptance limits before the trial. Record electrical results with the test conditions. Where the sheet will be formed, printed, bonded, cleaned or reused, evaluate the material after the relevant process as well as before it. Confirm the final grade and dimensions in the quotation.

Choose the relevant product route

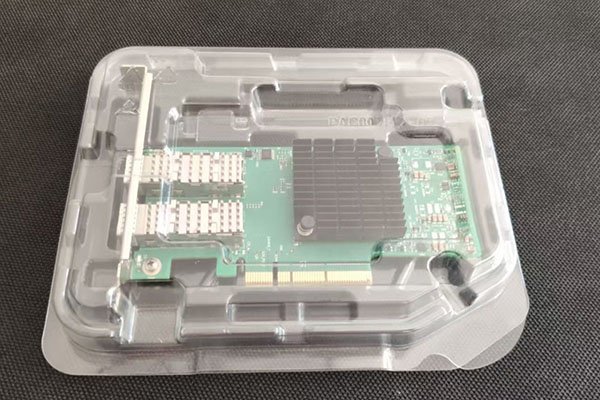

For formed component trays, review thermoforming ESD PET sheet. If a conductive grade is required, compare the conductive PET sheet page. These are separate requirements and should be qualified against the intended use.

Frequently Asked Questions

What should buyers specify for anti-static PET sheets?

Specify the intended application, required electrical property, test method, conditioning temperature and humidity, thickness, cut size or roll format, quantity and destination. Confirm the proposed grade before ordering.

Does anti-static PET automatically provide ESD shielding?

No. An anti-static label alone does not establish shielding, charge decay or protection for a particular device. Evaluate the proposed material and the complete packaging or handling system against the requirements of your ESD control plan.

How should a sample be evaluated?

Agree acceptance criteria before testing. Check the relevant electrical properties under specified conditioning, then review appearance, handling, printing or bonding compatibility and any change after forming, cleaning or reuse.

PET raw material bags and film production equipment

Sample Review and Acceptance Criteria

Electrical performance

Specify what is being measured and the required limits. Record the test method and conditioning; compare results for the proposed grade under the agreed conditions.

Appearance and handling

Review clarity, haze, surface marks, separation and static attraction on the intended handling line. An anti-static treatment does not guarantee a dust-free surface or jam-free operation.

Treatment and service conditions

Confirm the treatment construction and expected use. Permanent performance, low-humidity behavior and resistance to cleaning require evidence for the actual grade.

Converting compatibility

Trial cutting, forming, printing, labeling and bonding as applicable. Check both appearance and the relevant electrical properties after processing.

Complete-system evaluation

Assess the sheet as part of the intended handling or packaging system. Do not infer ESD shielding or device protection solely from a surface-resistance result.

Documentation and approval

Request the proposed grade specification and available test records. Agree acceptance limits, sample approval and commercial terms before production.

Film winding equipment and packaged rolls

Supply Review for Your Static-Control PET Project

Prepare an inquiry around the device, handling process and electrical requirements of your static-control project. Confirm the material construction, test evidence, sample criteria and delivery scope before approving supply.

1. Confirm Supply Scope and Timing
Provide dimensions, quantity, packing requirements and destination. Request confirmation of the proposed production schedule, order quantity and delivery terms for your specification. Agree any staged supply or repeat-order requirements in writing.

2. Review Grade-Specific Documentation
Identify the exact material grade and intended use. Request applicable certificates or test reports and check their issuer, scope, validity and material identification. Confirm destination-market requirements separately; a general company certificate does not establish compliance for every product or use.

3. Keep the Approved Specification Traceable
Record the material grade, treated face, dimensions, approved sample and electrical acceptance criteria. Keep the test method, electrode arrangement and conditioning temperature and humidity with the inspection record. Agree how material or process changes will be reviewed before repeat supply.

4. Validate the Finished Part and System
Evaluate representative trays, separators or packaging after the intended forming, printing, cleaning or handling cycle. Test the electrical properties required by the ESD control plan under agreed conditions. Resistance results alone do not establish shielding or protection for a particular device.

Product focus: Anti-static PET sheet stock; handling, separator and packaging requirements.

Request an Anti-Static PET Sheet Quotation

Send the application, handled device or component, drawing, dimensions, electrical criteria, test conditions, quantity and destination with your inquiry. Agree the sample reference, inspection scope and delivery terms before approving supply.
