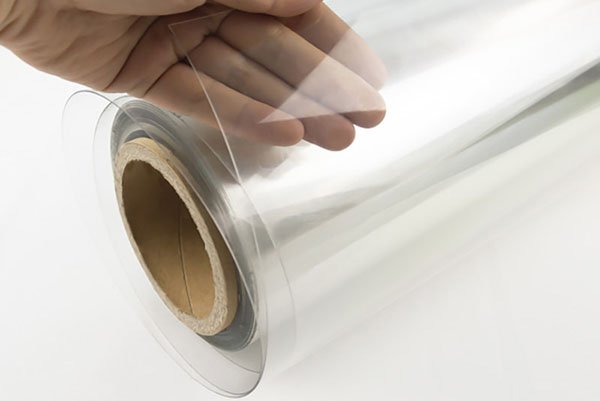

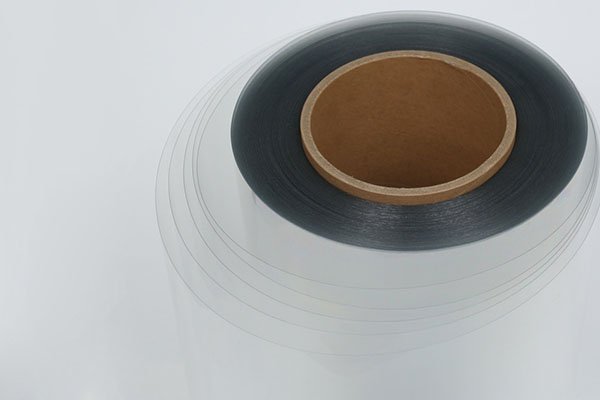

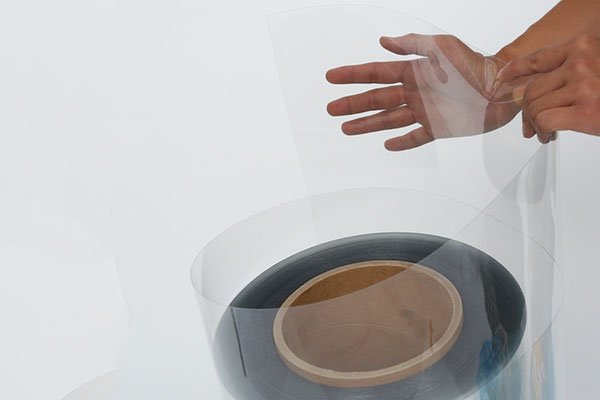

This page covers PET rollstock and sheets for thermoforming packaging. Specify the exact grade and finished-part requirements; film thickness alone does not establish suitability for a particular draw depth or forming speed.
| Item | Details to confirm |
|---|---|
| Material | PET grade, virgin or recycled content requirement, colour and surface construction |
| Thickness | Existing product range: 0.18–1.8 mm; confirm the selected grade, tolerance and availability in the quotation |
| Width | Existing product range: 300–1400 mm; confirm usable web width and edge requirements |
| Format | Roll or cut sheet; sheet dimensions, roll core, maximum roll diameter and roll weight |
| Forming process | Machine type, tooling drawing, cavity depth, heating method and target output |
| Acceptance | Finished dimensions, wall thickness, appearance, stacking, trim and closure or sealing checks |
| Order | Sample quantity, production volume, packing, delivery schedule and destination |
Anti-fog, antistatic, UV protection and barrier constructions require separate grade confirmation. They are not standard properties of every PET rigid film.
Start with the package drawing, intended contents and machine requirements. Compare sample grades using the same tooling and a documented trial procedure. Agree on appearance and dimensional acceptance before evaluating production output.
Do not assume so. Qualify the selected material at the intended geometry and gauge. Examine corners, pocket walls and flanges for thinning, whitening, cracking and dimensional variation.
Record the material grade and batch, thickness, storage and conditioning, heating and forming settings, cooling, trimming and trial speed. Inspect the finished parts and document rejects before approving repeat orders. Obtain grade-specific processing guidance rather than relying on one universal temperature or speed.
State the intended use and destination market, then request applicable documentation for the exact material construction. Food-contact, medical, sterilization, outdoor exposure and shelf-life suitability require their own evidence and finished-package assessment.
Provide thickness and tolerance, roll width or sheet dimensions, roll core and diameter limits, colour, part drawing, machine details, quantity and destination. Include sample approval criteria and any treatment or documentation requirements.


Use these related application collections to compare material format, thickness, surface treatment, forming behavior and RFQ details before requesting a production quote.
